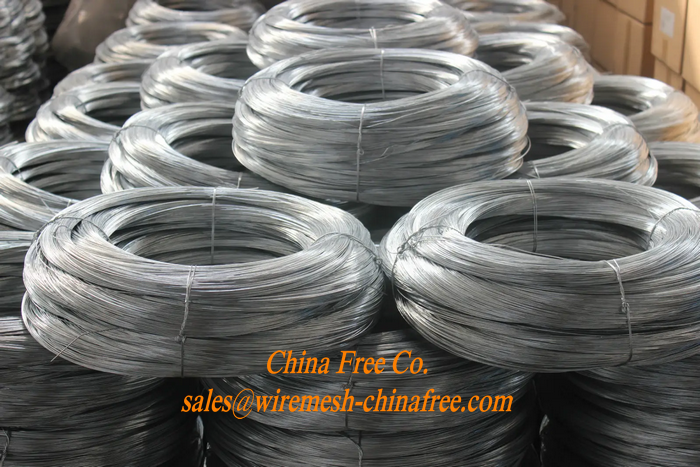

Galvanized steel wire, also known as galvanized iron wire, finds most uses in binding of construction materials or weaving of galvanized wire mesh products.
Quality Stand: GB/T343(low carbon galvanized wire for General application)
GB/T346(low carbon galvanized wire for communication wire)
ASTM A411(low carbon galvanized iron wire for Armoring Cable)
Material: Low carbon wire rod Q195,Q235, SAE1006,SAE1008,BP05.
Wire Diameter: 0.5mm-8.00mm
Zinc Coating:20-350g/m²
Tensile Trength: 350-700Mpa/mm²
Production Processing:Wire Rod--Drawing Wire--Acid Cleaning--Zinc Coating--Packing.
Packing:5kg-800kg in coil wire; Spool packing wire for special application.
Application: weaving wire mesh,barbed wire, gabions,amoring cable wire.
Quality Inspection:Zinc, Tensile Strength, Wrapping test, Torsion test, Elogation.
Galvanized Redrawing Wire
Redrawing Wire is made from hot dipped galvanized wire or electro galvanized wire. Bright and smooth surface, improve of tensile strength. Mainly used for making cloth hanger, all of staple, construction, medical, high pressure pipe and handcraft and so on.
Raw Material: Q195,Q235,SAE1006,SAE1008
Tensile strength: 700-1100N/mm²
Wire Diameter: 0.2-4.0mm
Zinc coating: 10-30g/mm²
Packing: 1kg-100kg/spool; or 25kg-100kg/coil
Using: 0.2mm-0.4mm: mainly used for making clean ball.
0.5mm-1.4mm: mainly used for making staple,code nail.
2.2mm-2.8mm: mainly used for making hangers.
2.5mm-4.0mm: mainly used as handle of bucket.
High Strength hot dipped galvanized steel wire:
Production Standard: ASTM B498(Steel core wire for ACSR)
GB/T 3428(Overhead stranded conductor or Aerial Wire strand);
GB/T17101(Hot dipped galvanized steel wire for bridge cable)
YB/4026(fence wire standard)
YB/T 5033(cotton baing wire standard)
Material: high carbon steel wire rod. 45#,55#,65#,70#, SWRH 77B, SWRH 82B.
Wire Diameter: 1.25mm-5.50mm
Zinc coating: 45g-300g/mm²
Tensilfe strength: 900-2200Mpa
Packing: 50-200kg in Coil wire; 100-300Kg in metal spool.
Usage: steel core wire for ACSR, cotton baling wire, cattle fence wire, vegetable house wire, spring wire and wire ropes.
Feature: High tensile strength; good elongation and yiled strength; good zinc adhesive.
PVC Coated Wire
1.Material: Black wire + PVC or Galvanized wire +PVC
2.Color: green ,black, yellow etc.
3.Wire diameter: inside core wire: 0.5mm to 4mm; (BWG24#--8#),outside wire:1.0mm to 5.0mm (BWG19#-6#)
4. pvc thickness: 0.5-1.0mm
5.Advantage:
1)fireproof and good in insulating properties
2)Pvc wire offers excellent corrosion resistance and anti-aging property
3)PVC wire have longer service life compared with common galvanized wire.
