Plain - Twill Wire Mesh - Stainless Steel Wire Mesh Factory
Stainless steel wire mesh has the good performances as wear-resisting, heat-resisting, acid-resisting and corrosion resisting.
Because of these characteristics, the wire mesh made of stainless steel is extensively used in mining, chemical industry, food industry and pharmaceutical industry.
Our stainless steel wire mesh products are generally made of SUS302, 304, 316, 316L and 321.
Plain weave:
This is the most commonly used weaving type.
Each warp wire crosses alternately above and below each weft wire. Warp and weft wires generally have the same diameter.
Twill Weave:
The wires of the weft and the warp intercross two above and two below, inverting the intersections of the warp wire at an established distance and obtaining a rigid, stable and robust type of wire mesh fabric.

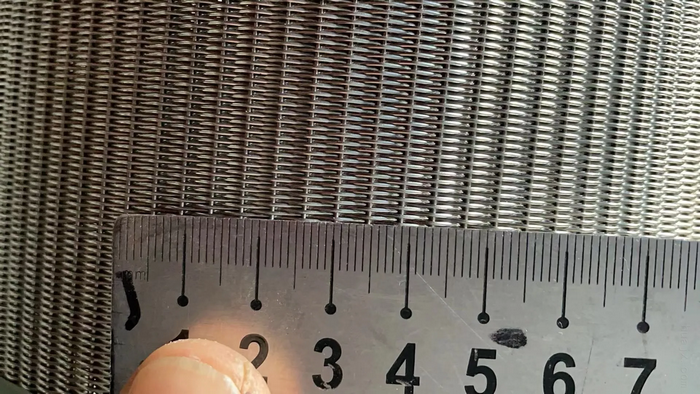

Dutch Twilled Weave:
The wires of the weft and the warp intercross two above with a larger weft wire than the warp.
Such kind of wire mesh allows a greater difference between the diameter and the number of weft and warp wire.
