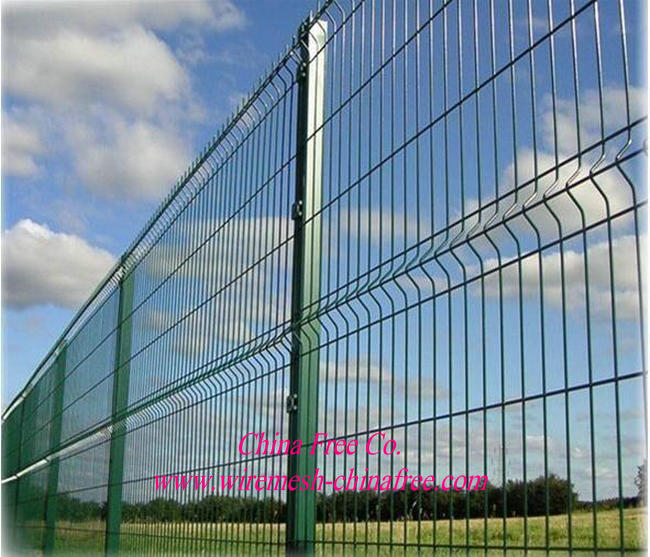

Green PVC coated 3D fence panels are installed in red and yellow peach posts.

3D-01: Green vertical wires are penetrated into peach posts for a solid connection.

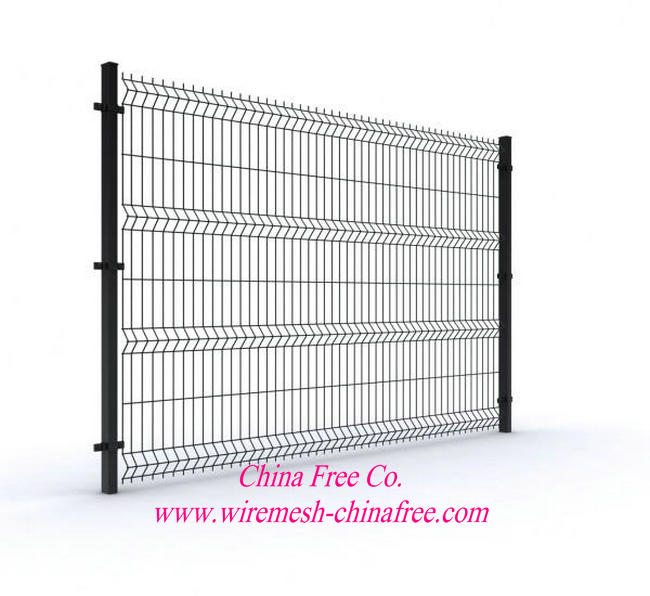

3D security welded wire fence features pressed horizontal "V" shaped beams, in which a horizontal wire spans the entire width of the panel that could provide added strength and rigidity. As a special kind of welded wire panel, 3D welded wire fence panel is made from galvanized carbon steel or iron wires mostly, which is bent into suitable "V" angle and then welded into panel.

For its unique form, beautiful appearance and medium level of security protection, 3D security welded wire fencing system is ideal for residential and recreational places. And it still offers improved performance and long service life against theft and vandalism on account of its heavy wire, rigid welded structure, fully tightened bolt assembly, the super-durable and environmentally sound powder coating.

Materials: carbon steel wire, galvanized wire, stainless steel wire, other material available.
Specifications:
Wire diameter: 2–6.5 mm.
Spacing between vertical wires: 50 mm, 55 mm, 60 mm, 75 mm, 80 mm.
Spacing between horizontal wires: 50 mm, 100 mm, 150 mm, 200 mm.
Panel width: 1.5–4.0 m.
Panel height: 0.6–3.0 m.
"V" beams No.: Panels up to 0.9 m/1.2 m/1.8 m height have 2 "V" beams, 2.0 m/2.4 m height have 3 "V" beams.
Surface treatment: 3D fence panels made from galfan wire, then PVC powder coating (Min. 100 micron), or PVC powder painting. It provides additional protection and increases the potential life span.
Colors: RAL 6005 green, RAL 9005 black, RAL 5010 blue, RAL 3000 red, RAL 9010 white. All RAL color is available.
Accessories: posts, post base feet, barbed wire, slotted clamp bars, post cap, bracket, bolts, spacer, nuts, washer, clips, etc.
