Wire Mesh Discs Use as Air Filter in Cars & Trucks

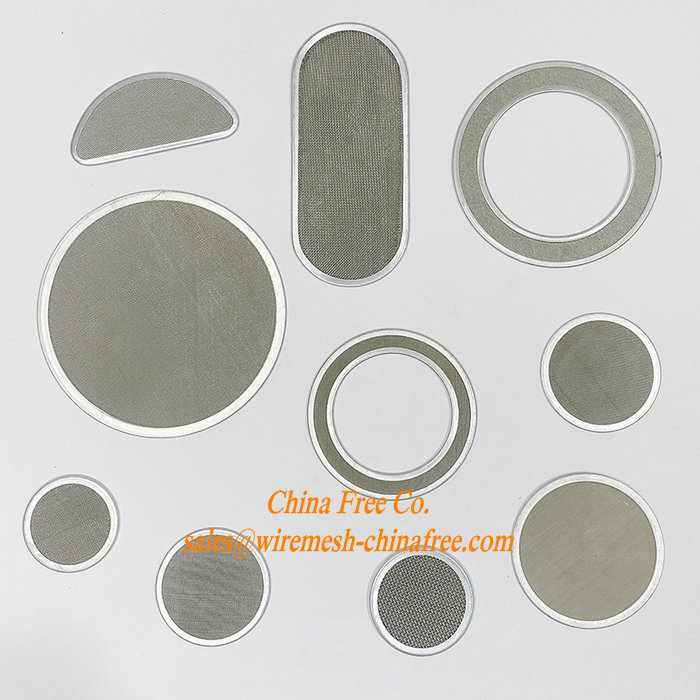

Wire mesh discs are made of various metal woven mesh and serve as spare parts for rescreening filter plates in horizontal centrifugal filters or as fitted components in filters for polymer filtration.The large sizes are used as fittings in air separation systems and chemical equipment.
Material:Stainless steel, plain steel,brass ,copper etc
Weave Type:plain (twill weave are available upon request), Single-strand multi-strand weave
Filtration grade:From 3 μm up to 10 mm.All products can be ultrasonically cleaned, if requested!
Shape :Shape:Round,Circular,Rectangle,Oval and other shapes according to customers' requests.
Structure:single-layer network, Multi-layer film filter, combined filter film,with rim .
Rim:Stainless steel, aluminium
Specification:
The unbounded filter disc can be directly processed into the required shape by a punch through a special mold.The edged filter disc is first processed into the required shape by a special mold through a punch, and then hemmed with slats through the mold.
The wire mesh disc is made of stainless steel mesh, black wire mesh, galvanized mesh and so on.
Layer counts ranges: 1-5 layers
plate thickness: 0.5-0.9mm
Disc diameter: 5mm-1000mm
Feature:
(1)Alkali and acid resistance.
(2)Super percision.Uniform wire diameter and aperture with extremely low difference.
(3)Easy to intall and clean.
(4)The details data can be customized,such as wire diameter,aperture,thickness and so on.
(5)Low and high temperature resistance.
Application:
(1)Be used in plastic and rubber processing machinery to ensure a clean and viable extrusion.
(2) Be used in oil industry and cereal sifter.
(3) Be mainly used in the absorption, evaporation and filtration process in petroleum, chemical, medicine, metallurgy, machinery,ship and automobiles to delete the mist drop or liquid foam or used as air filter in cars and trucks.
