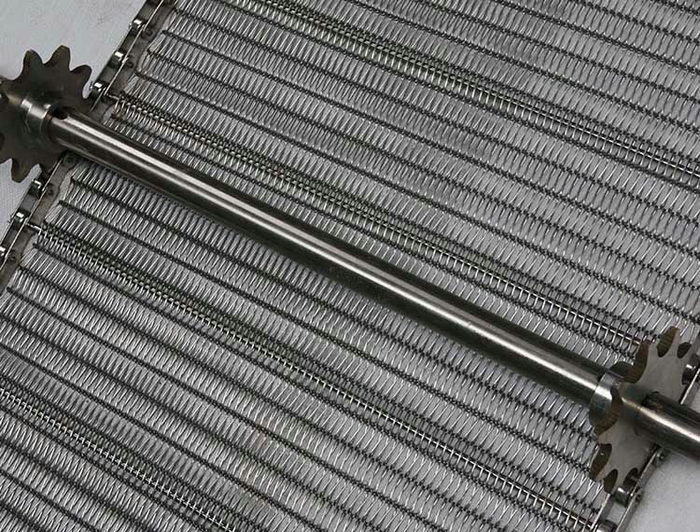

Stainless steel conveyor mesh belt for drying walnuts. The dryer has three layers. The length of the single-layer assembly line is 10 meters. One cycle is 20 meters. The three layers are 60 meters in total. The conveyor mesh belt for drying walnuts is very suitable for use on drying equipment because of its excellent air permeability and large load capacity. The belt chains on both sides will not deviate, The

Stainless steel conveyor belt for drying walnuts is introduced as follows:
The total width of stainless steel conveyor belt is 800mm, and the material is stainless steel 201. The chain adopts a large ball chain with a pitch of 38.1mm, a mesh diameter of 1.5mm, a mesh size of 15 * 20mm, a shaft diameter of 8mm, and a shaft spacing of 4 chains with a rod of 152.4mm

The chain conveyor belt is widely used in various assembly line conveying equipment, and its service life depends on the specific use situation. It is also recommended that the conveying speed should not exceed 20 meters per minute, because the metal conveying speed is too fast, the noise will be loud, and the wear of various parts will also accelerate, which will shorten the service life of the conveying equipment.
