Conveyor Belt Used for Hard Cotton Assembly Line

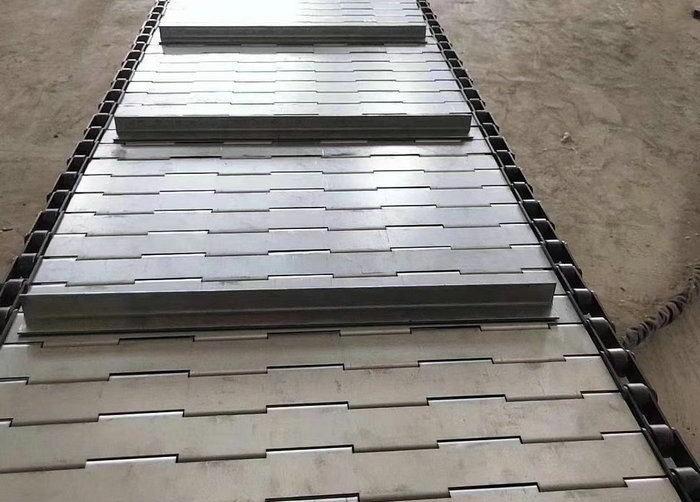

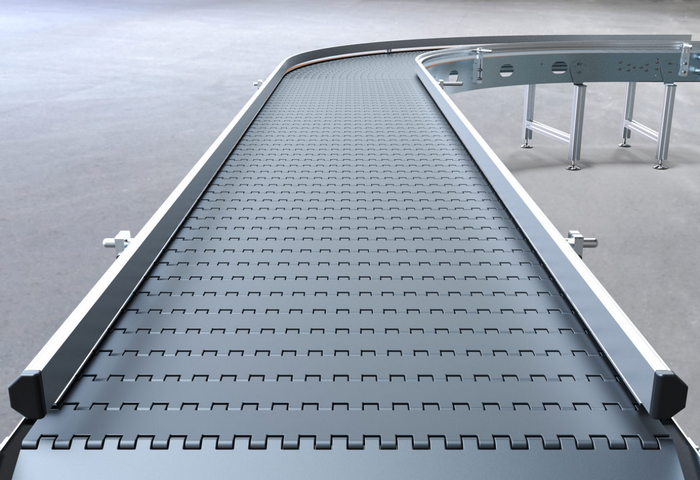

The chain plate conveyor belt assembly line can bear large loads and long-distance conveying; the line body form is straight line and turning conveying, the chain plate width can be designed according to the customer or the actual situation. The form of the chain plate is a straight chain plate and a turning chain plate. The main structure is made of carbon steel sprayed or galvanized, and the clean room and food industry are made of stainless steel. The chains at both ends can be fixed with cotter pins or washers, and cotter pins are used for easy disassembly and maintenance.
Chain conveyor belts are mainly used in the following areas:
Die casting, low temperature furnaces, chip removal, forging, cooling conveyors, recycling and hoists, tunnel freezers, etc.
Chain plate mesh belt features:
1.0 to 6mm thick, edge chains, pitches from 25.4mm, 38.1mm, 50.8mm, 76.2mm, 228.6mm, carbon steel or stainless steel (stainless steel 3mm thick), stainless steel or cast iron sprockets, custom edge guards available Or lateral baffles. Chain plate conveyor lines are widely used in the assembly and transportation of diesel engines, household appliances, food, automobiles, motorcycles, engines, and other industries.
The chain plate conveyor belt uses the chain as the traction and carrier to convey materials. The conveying chain plate can use ordinary sleeve roller conveyor chains, and can also use various other special chains (such as accumulation chains, double-speed chains).
Chain conveyor belt standard width: 200, 300, 400, 500, 600, 700, 800, 1000, 1200, 1500, 2000mm, etc. Other special specifications can also be adopted according to customer needs.
The conveying chain plate has a large conveying capacity, mainly conveying pallets, large turnover boxes, etc. The conveying chain plate has a variety of structures and various accessories, which is easy to realize accumulation and conveying, and can be used as an assembly line or as a storage and conveyance of materials. Conveyor chain plate power roller table is composed of power roller barrel assembly, aluminum side plate, sheet frame, tie rod, bearing seat, driving device and chain.
