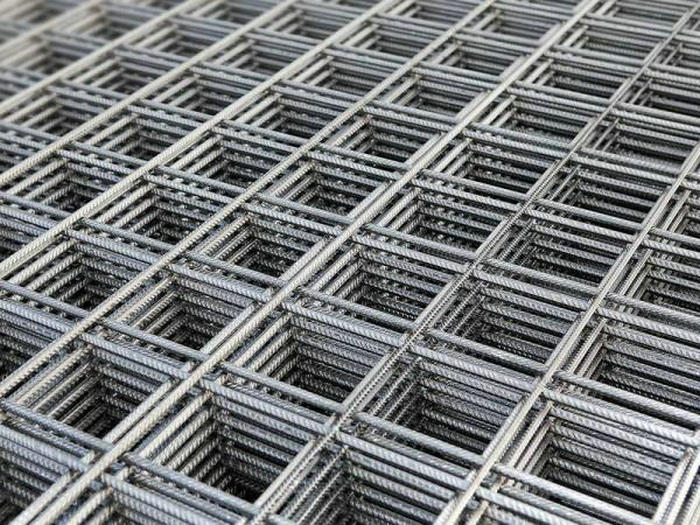

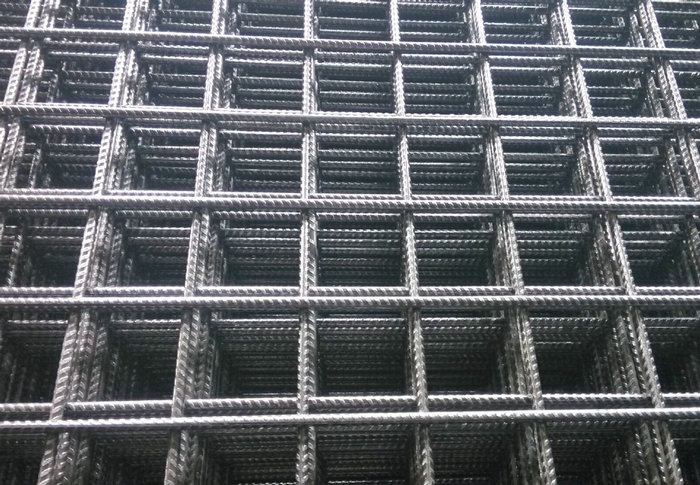

Reinforcement wire mesh is a welded wire fabric, prefabricated steel reinforcement material. It has a rectangular or square reinforcement mesh grid pattern and is produced in flat sheets.
Wire diameter: 3mm-16mm
Material: Low carbon steel rod
Length: 1m-12m or as per customized
Width: 0.5m-3m
Usage: Road, bridge and tunnel,building
Hole shape:Rectangle,Square
Mesh opening:100--400MM
Features: High tension strength
AS/NZ 4671:2001 Australia/New Zealand Standard
| Ref No. | Stand Unit | Longitudial Wires (mm) | Edge Wires(mm) | Cross Wires(mm) | Mass(Kg) |
| SL81(F81) | Sheet | 7.6@100 | 7.60@100 | 7.60@100 | 105 |
| SL102(F102) | Sheet | 9.5@200 | 6.75@100 | 9.50@200 | 80 |
| SL92(F92) | Sheet | 8.6@200 | 6@100 | 8.60@200 | 66 |
| SL82(F82) | Sheet | 7.6@200 | 5.37@100 | 7.60@200 | 52 |
| SL72(F72) | Sheet | 6.75@200 | 4.77@100 | 6.75@200 | 41 |
| SL62(F62) | Sheet | 6@200 | 4.77@100 | 6@200 | 33 |
| SL52(F52) | Sheet | 4.77@200 | 4.77@100 | 4.77@200 | 21 |
Packing details:
1. Packed in bundles, pallet or as the customers' request
2. 5-10 days for one 20' container
