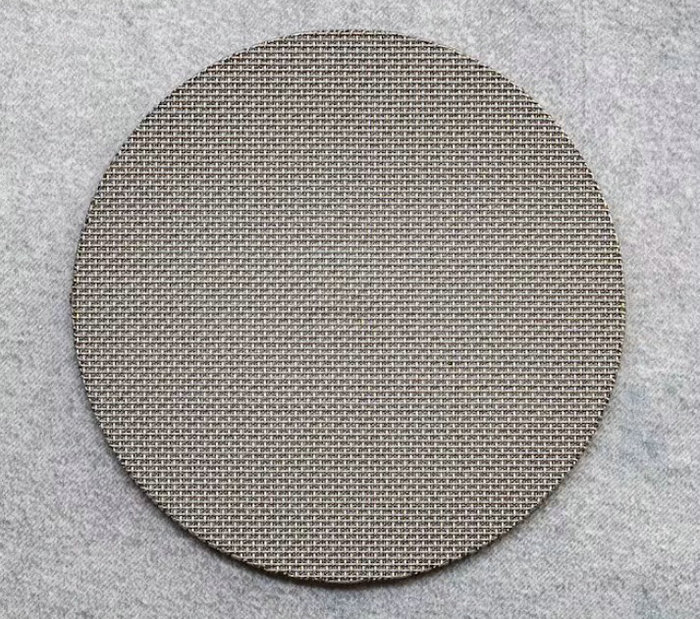

Sintered Wire Mesh Disc for High Efficient Filtration

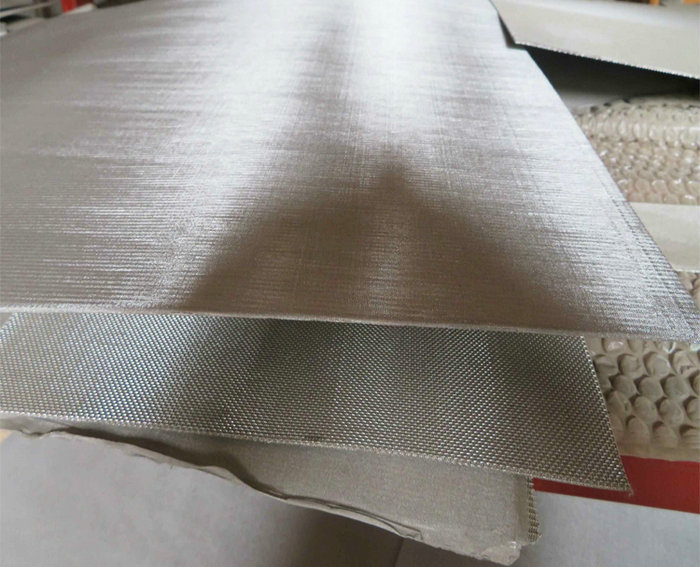

Sintered Wire Mesh is a high-quality filtration material that is widely used in various industries, including chemical, pharmaceutical, food and beverage, and environmental protection. It is made by sintering multiple layers of woven wire mesh together, creating a strong and durable material that can withstand high temperatures and pressure.
Six-layer sintered wire mesh
Filter rating: 1 µm to 100 µm.
Overall thickness: 3.5 mm.
Standard size: 1000 mm × 1200 mm.
Seven-layer sintered wire mesh
Structure: 50 / filter layer / 40 / 20 / 40 / filter layer / 50.
Thickness: 2 mm.
Filter rating: 2 µm - 150 µm.
Weight: 7.4 kg/m2.
Porosity: 58%.
Material:SUS 304, SUS 304 L, SUS 316, SUS 316 L, other alloys are also available as required.
Feature
High mechanical strength and stability.
High permeability.
Stainless steel for corrosion resistance.
Easy to be fabricated into other deep filter media.
Accurate filter ratings.
Easy to clean, it can be reused for many times.
Application
Filtration: Hot gas filter element, process filter element.
Fluidization: Fluidized beds, air slides, aerators, flow control devices.
Other applications: Acoustic attenuation, foaming in air diffuser, flashing and explosion of flame arrestors prevention.
Sintered Wire Mesh has several advantages over traditional filtration materials. Firstly, it has a high filtration accuracy, which can effectively remove impurities and particles from liquids and gases. Secondly, it has a large filtration area, which means it can handle a high volume of fluid or gas flow. Thirdly, it has excellent mechanical strength and can withstand harsh operating conditions.
Sintered Wire Mesh is easy to clean and maintain, which can save time and money in the long run. It is also environmentally friendly, as it can be recycled and reused.
Sintered Wire Mesh is a reliable and cost-effective filtration solution for various industries. With its high filtration accuracy, large filtration area, and excellent mechanical strength, it can help improve product quality and increase production efficiency.
