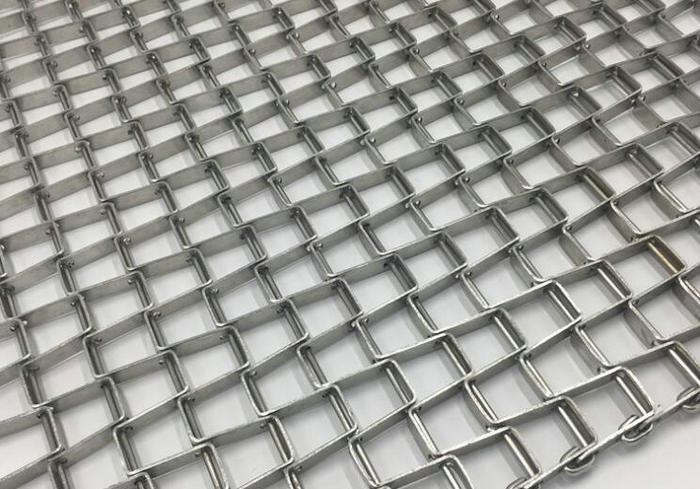

Great wall conveyor mesh belt is an open grid belt made of flat wire strips connected to each other by straight rods and pulled by specific sprockets. This belt is suitable for cleaning processes, cooking, cooling, products transfers, drying material and water treatment.

Parameter:
Material: SS201,SS304,SS316
Spiral pitch:15-30mm
Pitch:12.7-76.2mm
Rod diameter:2-12mm
Plate thickness:0.8-3mm
Overall width:100-6000mm
Plate width:8-25mm
Specail specifications:available.

Excellent strength to weight ratio but with maximum flexibility to prevents belt from deforming under heavy loads.
High temperature resistance, non-slip, anti-corrosion, anti-rust, resistant to acid and alkaline.
Complying with food safety standards.
Large opening area with good air circulation.
Side and center baffles can be added to the conveyor belt to prevent the products from falling down to the ground.
Easy to clean, assemble and disassemble, save maintenance cost, durable and long lifespan.
