Chemical Composition of 0Cr18Ni10Ti Stainless Steel Mesh

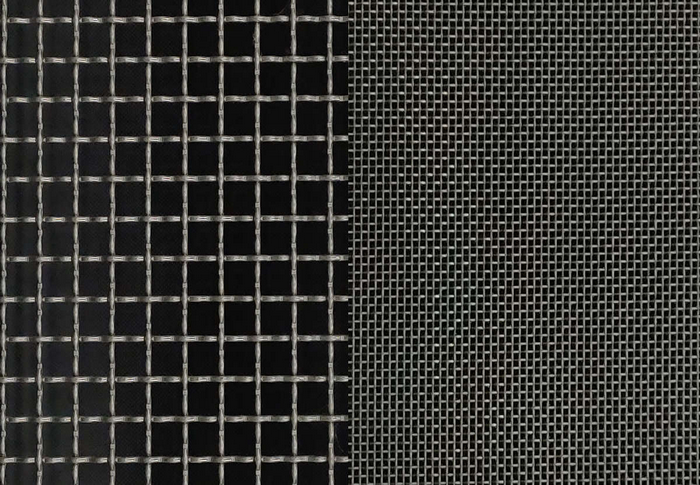

06Cr18Ni11Ti stainless steel mesh is well-known as 06Cr18Ni11Ti plain weave square hole mesh, 06Cr18Ni11Ti filter mesh, 06Cr18Ni11Ti wire mesh, 06Cr18Ni11Ti metal mesh, 06Cr18Ni11Ti stainless steel wire woven mesh, 06Cr18Ni11Ti metal wire woven square hole mesh, 06Cr18Ni11Ti wire mesh, etc.



06Cr18Ni11Ti is the new grade of TP321, and the old grade of TP321 is 0Cr18Ni10Ti. 0Cr18Ni10Ti is a kind of stainless steel. It adds Ti elements to 304 steel to prevent intergranular corrosion; it is suitable for use at a temperature of 430 ° C ~ 900 ° C. It is used in aircraft, exhaust pipe, boiler drum, etc. A brief history of structural development Production process application fields.



Stainless steel grades are composed of chemical composition plus numbers, but it is not easy to remember. So usually we call it American brand and Japanese brand, and they are all composed of numbers and letters.



06Cr18Ni11Ti stainless steel wire mesh specifications and models:

Mesh: 1-200 mesh; Width: 0.5-8 meters; Weaving method: plain weave, twill weave, mat weave, contrast weave, etc.



0Cr18Ni10Ti stainless steel wire mesh chemical composition:

Carbon C: ≤0.08

Silicon Si: ≤1.00

Manganese Mn: ≤2.00

Sulfur S: ≤0.030

Phosphorus P: ≤0.035

Chromium Cr: 17.00～19.00

Nickel Ni: 9.00～12.00

Titanium Ti:=5x(c%-0.02)~0.8



06Cr18Ni11Ti mechanical properties

Tensile strength σb (MPa): ≥520

Conditional yield strength σ0.2 (MPa): ≥205

Elongation δ5 (%): ≥40

Reduction of area ψ (%): ≥50

Hardness: ≤187HB; ≤90HRB; ≤200HV



The chemical composition of 06Cr18Ni11Ti is the same as that of the new and old brands of TP321. The old and new brands of 06Cr18Ni11Ti and 0Cr18Ni10Ti can replace each other.
