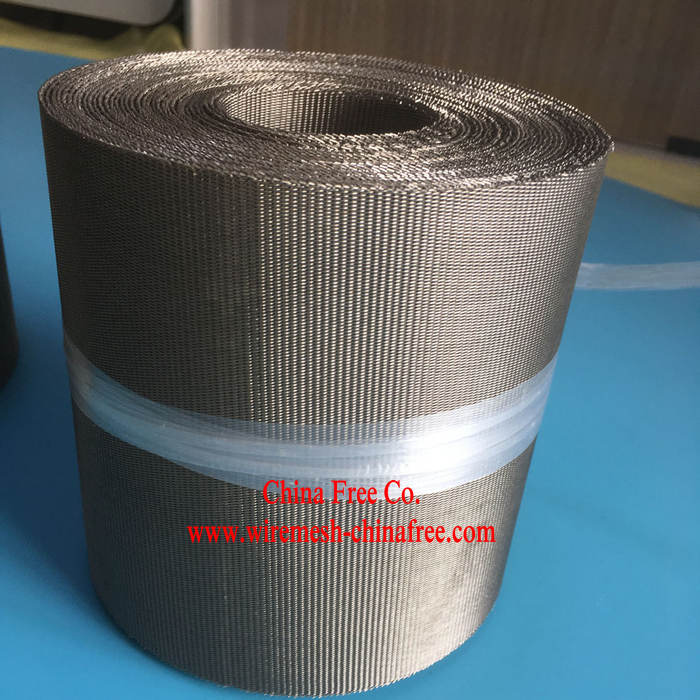

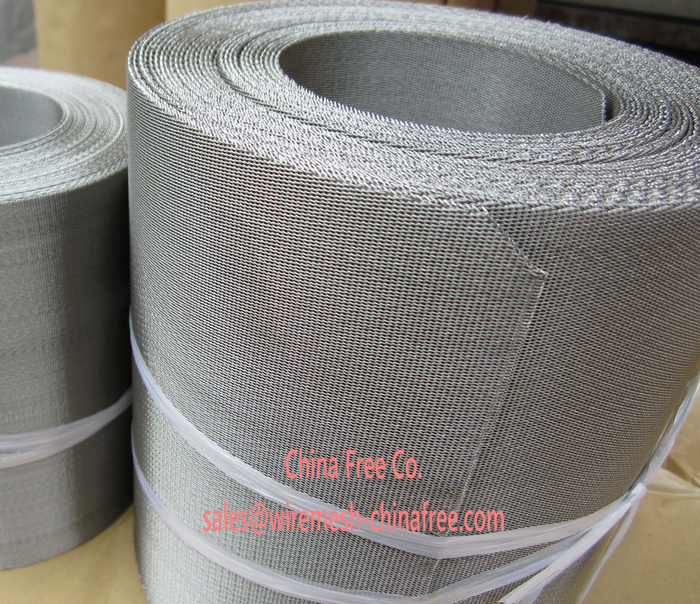

Reverse twill dutch weave wire mesh is a very strong woven mesh. This mesh is ideal for Auto-Screen changers used in the plastic extrusion industry.

Specifications of reverse twill dutch weave wire mesh:
Material: Stainless Steel 302,304,316,316L
Woven Type: Reverse Dutch Weave (RDW woven)
Mesh Sizes: 48x10 mesh, 72x15 mesh, 132x14 mesh,132x16 mesh,132x18 mesh,152x24 mesh,160x16 mesh,160x24 mesh,160x25 mesh,228x36 mesh,250x40 mesh,260x40 mesh, 325x39 mesh,400x120 mesh etc.
Roll Width:100mm to 1200mm. (such as 97mm,100mm,110mm,120mm.127mm,130mm,150mm)
Roll Length: 10m,20m,30m

Mesh per Inch (25.4mm) Warp x Weft	Wire Diameter (mm) Warp x Weft	Fineness of Filtering (micron)
48 X 10	0.5 X 0.5	330
63 X 18	0.40 X 0.60	220
72 X 15	0.45 X 0.55	210
100 X 16	0.35 X 0.45	190
107 X 20	0.24 X 0.60	210
120 X 16	0.35 X 0.45	180
132 X 17	0.32 X 0.45	170
152 X 24	0.27 X 0.40	160
160 X 17	0.27 X 0.45	160
170 X 18	0.27 X 0.45	160
171 X 46	0.15 X 0.30	130
180 X 20	0.27 X 0.45	170
200 X 40	0.17 X 0.27	120
240 X 40	0.15 X 0.25	70
260 X 40	0.15 X 0.27	55
290 X 76	0.09 X 0.19	40
300 X 40	0.15 X 0.25	50
300 X 80	0.15 X 0.2	35
400 X 120	0.058 X 0.1	30
615 X 105	0.04 X 0.11	27
615 X 125	0.04 X 0.11	25
615 X 130	0.04 X 0.13	22
615 X 132	0.04 X 0.11	22
625 X 104	0.04 X 0.15	28
720 X 150	0.036 X 0.10	17

Features:
With smooth surface, high hardness, working continuously, no deformation, high temperature resistance, corrosion resistance, flexible working with excellent filtering performance.

Applications:
High tensile warp wire for Auto-Screen changers used in the plastic extrusion Industry for PP, PE, ABS, PS, PMMA and other materials.
Packing: Water proof paper on each roll + carton / wooden case.
