Fence Solutions for Airport Security Perimeter Fencing

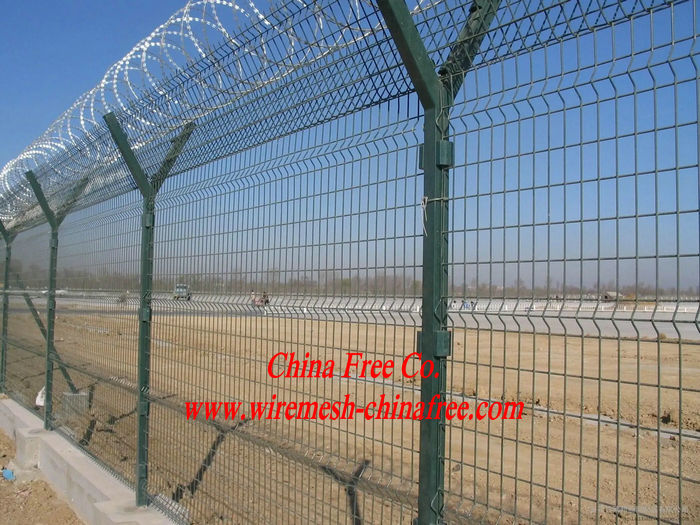

Airport fence is named by its application, it is made by welded wire mesh fence and chain link airport fencing with razor barbed wire on the top.
Airport fence is welded by galvanized wire, and then make V shape mesh panel and razor barbed wire, the last process is the surface treatment: PVC coated or Powder coated. The Y post is usually welded by square tubes. The most common razor wire on the top is BTO-22.
Fence Panel Common Specifications
Panel Width: 2.0m~3.0m, recommend 2m, 2.5m, 3m.
Panel Height: 2.0m~3.0m, recommend 2.2m, 2.5m, 3m.
Wire Diameter/Thick: 3.0mm~6.0mm
Mesh Opening: 50mm x 100mm, 50mm x 150mm, 50mm x 200mm, etc.
Bendings/Rigid V: 2, 3 or 4 bendings on the fence panel
Surface Treatment: Galvanized, PVC coated or Powder coated.
V Panel Common Specifications
V Panel Width: 2.0m~3.0m, recommend 2m, 2.5m, 3m.
V Panel Height: 0.5m, 0.6m, 0.7m
Wire Diameter/Thick: 3.0mm~6.0mm
Mesh Opening: 50mm x 100mm, 50mm x 150mm, 50mm x 200mm, etc.
Bendings/Rigid V: 2, 3 or 4 bendings on the fence panel
Surface Treatment: Galvanized, PVC coated or Powder coated.
Y Post Common Specifications
Square Post Diameter: 60mm x 60mm, 80mm x 80mm, 100mm x 100mm, etc.
Post Thickness:1.5mm~3.0mm
It is available with:
Galvanized or PVC coated — standard mesh or micromesh.
Barbed wire and
razor wire for added security protection.
Anti-climb and anti-cut features for higher security.
Suitable for many occasions,like backyard, children's playgrounds, sport fields, recreational grounds.
Material: Galvanized steel wire
Height: 0.5m-6m
Length: 4m-50m
Mesh Opening:20*20mm,50*50mm, 60*60mm,80*80mm etc
Wire diameter:1.0mm-6.0mm
Technique:Woven
Post & rail diameter:32mm, 42mm, 50mm, 60mm, 76mm, 89mm etc
Post & rail thickness:1.5mm, 2.0mm, 3.0mm, 4.0mm, 5.0mm etc
Post type:Round post, angle post, square post, etc
Surface treatment: Electric galvanized, hot dipped galvanized, PVC coated.
