Gabion Box - Stone Wall Gabion Cages Supplier

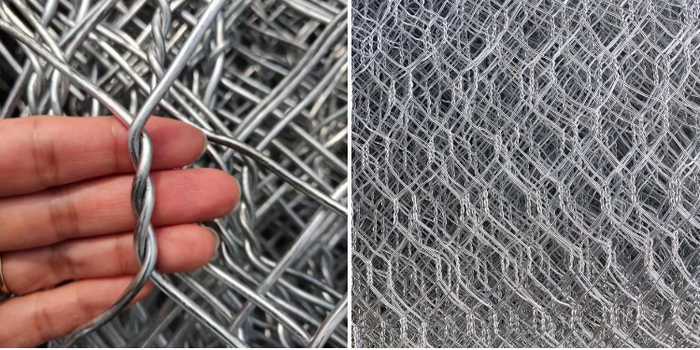

Gabion Box is made of heavy galvanized wire / ZnAl (Golfan) coated wire / PVC or PE coated wires, the mesh shape is hexagonal style. The Gabion Basket are used widely in slope protection, foundation pit supporting, mountain rock holding, river and dams scour protection.


Material: hot dipped galvanized iron wire, Galfan wire (95% Zinc 5% Aluminum), PVC coated iron wire.
Tensile strength: 350-500Mpa, Elongation ≥12%, according to EN10223-3
Wire diamater
Mesh wire: 2.0mm-4.0mm

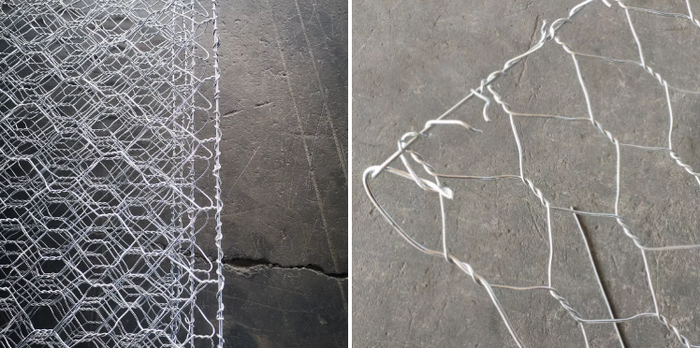

Selvadge wire:3.4mm,3.8mm
Lacing wire:2.2mm,2.5mm
Mesh size: 60*80mm, 80*100mm, 100*120mm
Color: Darkgreen, gray ,black , etc.

Gabion box size: 1*1*1m, 2*1*1m, 3*1*1m, 4*1*1m, 6*2*0.3m
Characteristics: Easy to install, rust prevention, corrosion prevention, low cost, high safety and less goods to be transported.

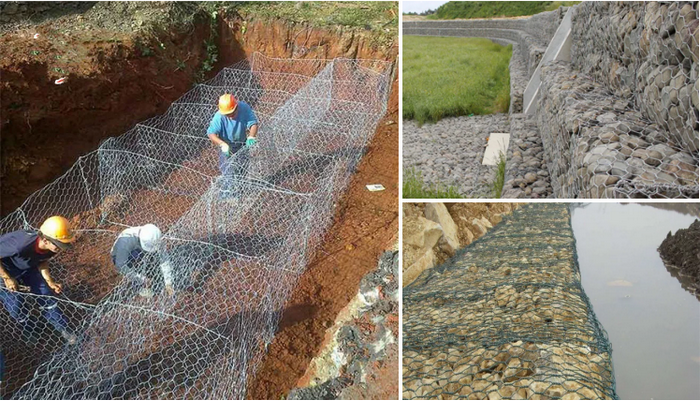

Application Of Gabion box:
Water and soil protection
Bridge protection
Hydraulic structures
Stengthening structure of soil
Protection engineering of seaside area
Retaining wall structures
Flood bank or guiding bank
Prevention of current scour and erosion control
Rockfall prevention and soil erosion protection.
