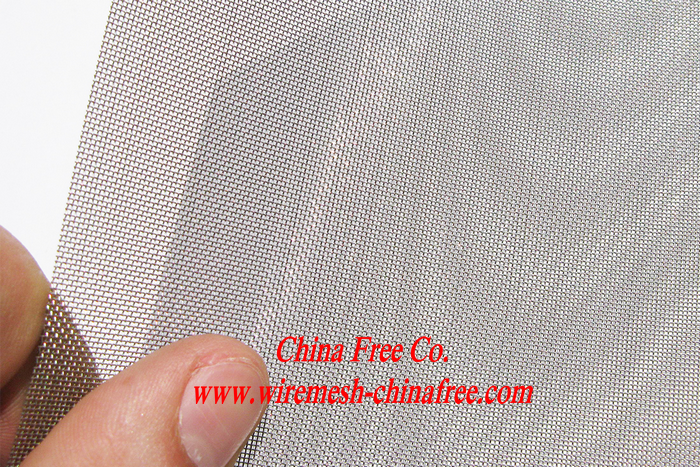

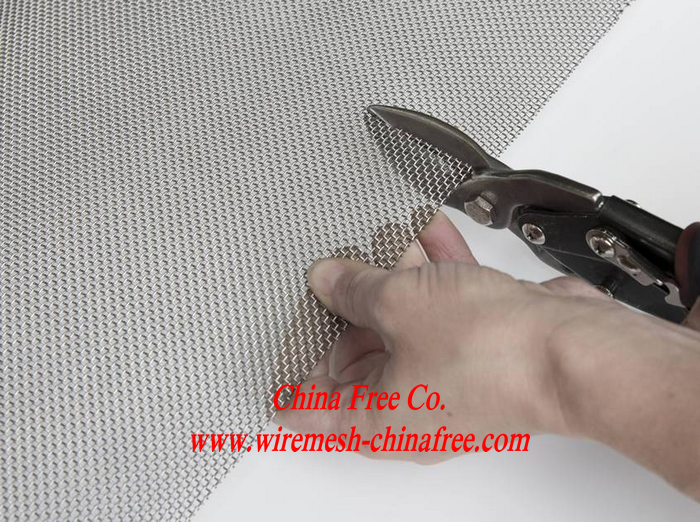

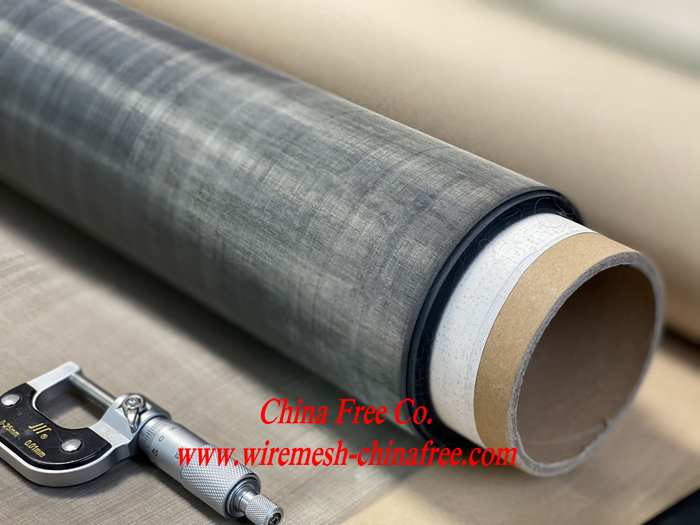

Molybdenum Wire Mesh Use for Filter, Heating Element



Molybdenum wire mesh can resist acid and alkali and oxidation, so it can filter chemical materials as filter elements. With good strength and high temperature resistance, molybdenum wire cloth can be used in high temperature furnace, or in aerospace, machinery manufacturing, electric-vacuum industry.



Specifications of Molybdenum Wire Mesh

Mesh	Wire Diameter			Opening (mm)
	SWG	mm	inch
6 mesh	22	0.711	0.028	3.522
8 mesh	23	0.610	0.024	2.565
10 mesh	25	0.508	0.020	2.032
12 mesh	26	0.457	0.018	1.660
14 mesh	27	0.417	0.016	1.397
16 mesh	29	0.345	0.014	1.243
18 mesh	30	0.315	0.012	1.096
20 mesh	30	0.315	0.0124	0.955
22 mesh	30	0.315	0.0124	0.840
24 mesh	30	0.315	0.0124	0.743
26 mesh	31	0.295	0.0116	0.682
28 mesh	31	0.295	0.0116	0.612
30 mesh	32	0.274	0.011	0.0573
32 mesh	33	0.254	0.010	0.540
34 mesh	34	0.234	0.0092	0.513
36 mesh	34	0.234	0.0092	0.472
38 mesh	35	0.213	0.0084	0.455
40 mesh	36	0.193	0.0076	0.442
42 mesh	36	0.193	0.0076	0.412
44 mesh	37	0.173	0.0068	0.404
46 mesh	37	0.173	0.0068	0.379
50 mesh	37	0.173	0.0068	0.335
60 × 50 mesh	36	0.193	0.0076	-
60 × 50 mesh	37	0.173	0.0068	-
60 mesh	37	0.173	0.0068	0.250
70 mesh	30	0.132	0.0052	0.231
80 mesh	40	0.122	0.0048	0.196
90 mesh	41	0.112	0.0044	0.170
100 mesh	42	0.012	0.004	0.152
120 mesh	44	0.081	0.0032	0.131
140 mesh	46	0.061	0.0024	0.120
160 mesh	46	0.061	0.0024	0.098
180 mesh	47	0.051	0.002	0.090
200 mesh	47	0.051	0.002	0.076
220 mesh	48	0.051	0.002	0.065
250 mesh	48	0.041	0.0016	0.0061
280 mesh	48	0.0035	0.0014	0.0056
300 mesh	49	0.031	0.0012	0.054
320 mesh	49	0.031	0.0012	0.046
350 mesh	49	0.031	0.0012	0.039
400 mesh	50	0.025	0.00098	0.0385
