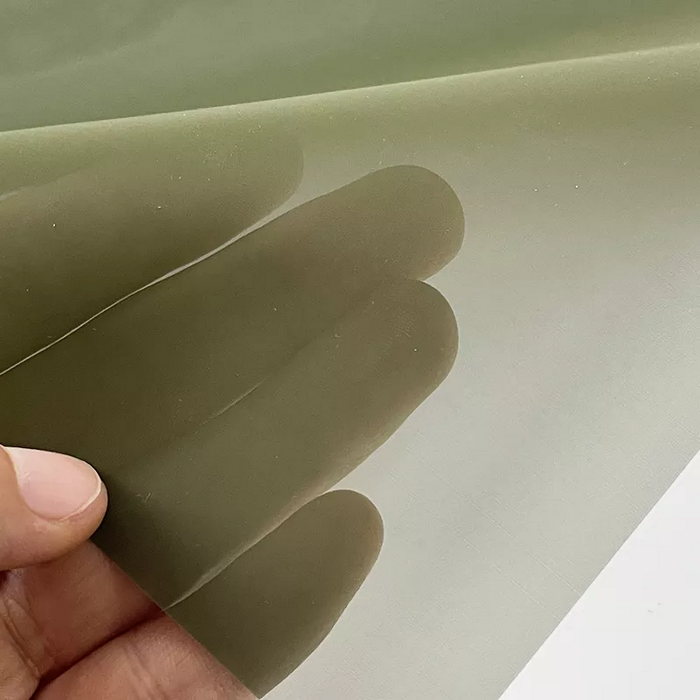

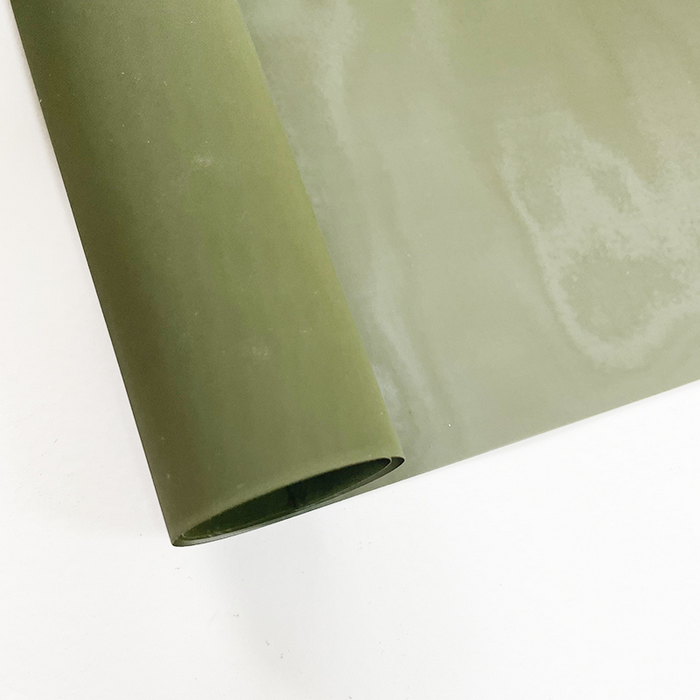

Teflon/PTFE coated wire mesh refers to woven wire mesh which is coated with fine Teflon resin. The wire mesh, with mesh size of 100 per inch, 200 per inch or 325 per inch, is woven from stainless steel wire diameter which is heavier than that used to weave bolting cloth.
The Teflon coating serves to increase the hydrophobic properties of the filter by allowing the passage of fuel but inhibiting the passage of water in the coalescer-based system. Finished products are specific used for filter devices, especially for industrial cartridge filters in high-temperature and chemical-resistant applications.

Features
Excellent hydrophobic performance.
Wide range of working temperature.
Chemically resistant and self-lubricating.
High tear-strength and good flex-life.
Designed for efficient operation & cost saving.
Easily to clean during maintenance & service operations.

Specification
Wire mesh material: stainless steel 304/316L
Coating: Polytetrafluoroethylene (TEFLON) resin.
Temperature Range: -73 °C to 260 °C.
Color: green.
Standard: ASTM E2016-11, UNS S31600.
Package: packed in roll, wrapped with moister-proof paper, put into wooden cases, or according to your requirements.

Application
PTFE coated wire mesh are commonly used as filter element in industrial applications.
Chemicals, resins and solvents.
Hydraulic oils.
Petroleum refining.
Power generation.
Pulp and paper industry.
Fuel lines.

The PTFE coating creates a release surface that facilitates a high volume of production for commercial food processors. For more information, contact us.
