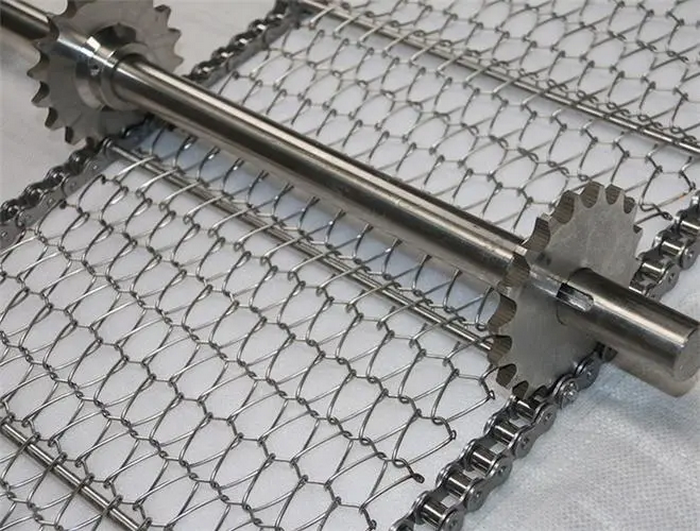

304 stainless steel chain conveyor mesh belt is used in drying conveying equipment. The drying temperature is about 600 degrees Celsius.
304 stainless steel can withstand high temperatures up to 800 degrees Celsius. It has strong corrosion resistance and is resistant to alkaline solutions and Most organic and inorganic acids have good corrosion resistance. The operating temperature of 310S stainless steel is 1150 degrees Celsius, and there are more 310S stainless steel for general industrial use.

Detailed specification of 304 stainless steel chain conveyor belt:

Width of the chain conveyor belt: 850mm

Conveyor belt length: 7000mm

The pitch of the stainless steel chain is: 31.75mm

The shaft diameter is: 6mm

Skewer spacing: 200mm

A mesh diameter is: 1.8mm

The pitch and pitch of string wire are: 30mm*20mm

Material: high temperature resistant 304 stainless steel.
Other specifications can be customized.
