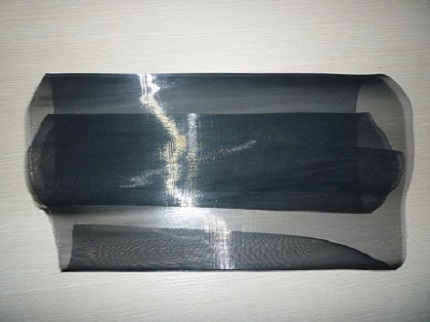

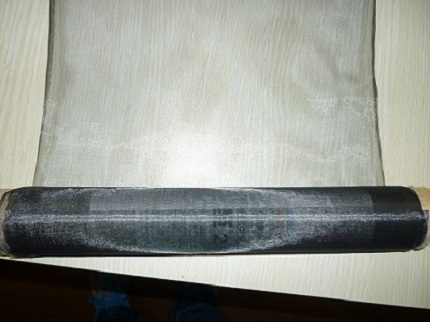

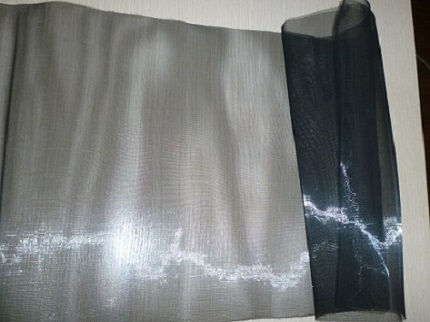

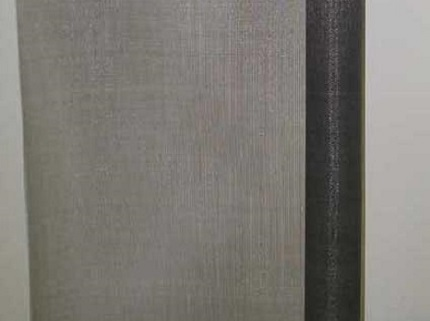

Tungsten wire mesh is made of pure tungsten wire. Tungsten mesh has excellent high temperature mechanical properties and the smallest coefficient of thermal expansion among all metals.

It is used in the elevated temperature filtration applications. It has supreme thermal creeping resistance and maximum service temperature up to 3400oC. Tungsten mesh is extremely durable.
Tungsten wire mesh available specifications:
Wire diameter: 0.03mm to 2mm
Opening size: 0.1mm to 25mm.
Sheet size: width up to 2000mm, no limit to length
Note: small samples of several sizes  are available for testing purpose
Tungsten Mesh Applications:
Chemical industries, acid production, scientific research labs and universities,  filter, vacuum apparatus, hydrogen production, fire hazard security and heat shielding.

Tungsten wire mesh property data:
Tungsten, element symbolis W, atomic number is74 in the periodic table, is a VIB group metal.
Atomic No.74
Melting Point:3695 K or 3422oC or 6192oF
Boiling Point:6203 K or 5930 oC or 10706 oF
Density:19.25 g/cm3
Thermal expansion:4.5 µm/ (m.K) at 25oC
Thermal conductivity:173 W/m.K
Electrical resistivity:52.8 nΩ.m at 20oC
Young Modulus:411 GPa
Shear Modulus:161 GPa
Poisson Ratio:0.28
Vickers Hardness:3430 to 4600 MPa
Brinell Hardness:2000 to 4000 MPa



Related products: molybdenum wire mesh, stainless steel wire mesh
