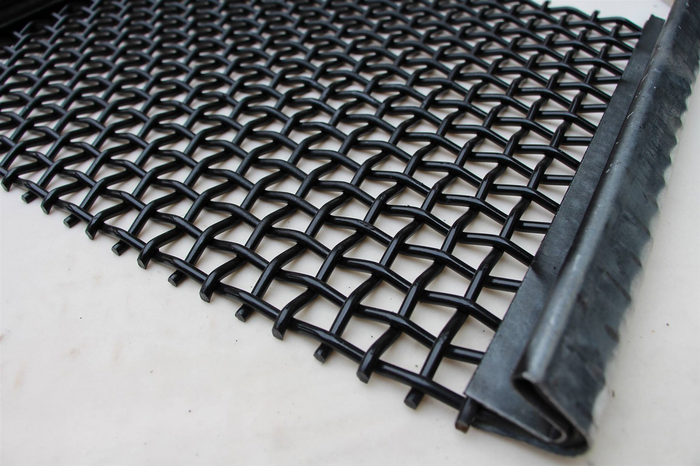

Woven vibrating screen mesh is also called quarry screen mesh, crusher screen mesh. It is made of spring steel wire (high carbon steel wire, medium carbon steel wire, manganese steel wire) and stainless steel wire.

It has different weaving types and edge preparations. The main weaving types are flat top and crimped. Crimped type can be divided into single wire crimped and double wire crimped.
The high quality raw materials makes woven vibrating screen mesh have many features, such as high tensile, wear, temperature and weather resistance and so on.

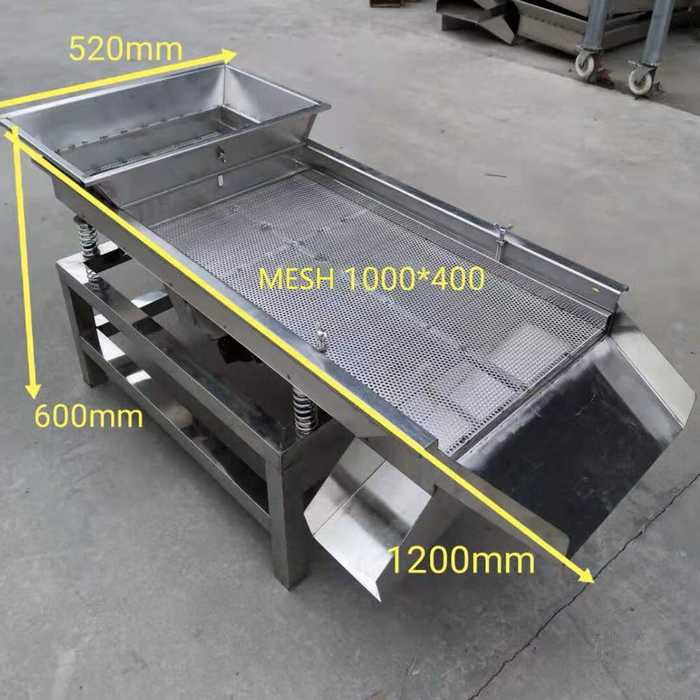

With so many features, the woven vibrating screen mesh is used on vibrating machines in screening and sizing all kinds of sand, gravel, coal, stone, rock and other materials in mining, quarry, aggregate production industries.

Material: Stainless steel wire, high carbon steel wire, low carbon steel wire, galvanized iron wire, galvanized steel wire, non-ferrous metal wire.
Wire diameter: 1.5MM -14MM
Mesh size: 2mm-110mm

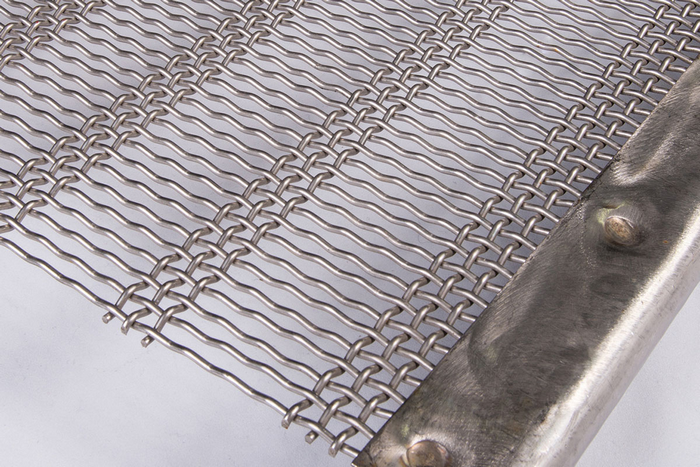

Weaving type: Double crimped, intermediate crimped, flat top crimped, lock crimped.

1. Angle: 30 degrees, 45 degrees,60 degrees
2. Crimped Wire Mesh Shape: v-shaped, u-shaped
3. Hook Type: C or U hook for 30°-180°
4. Weaving Type: Double crimped, intermediate crimped, flat top crimped, lock crimped.
5. Mesh Type: Square, rectangular slot, long slot.
6. Surface Treatment: Anti rust oil painted.

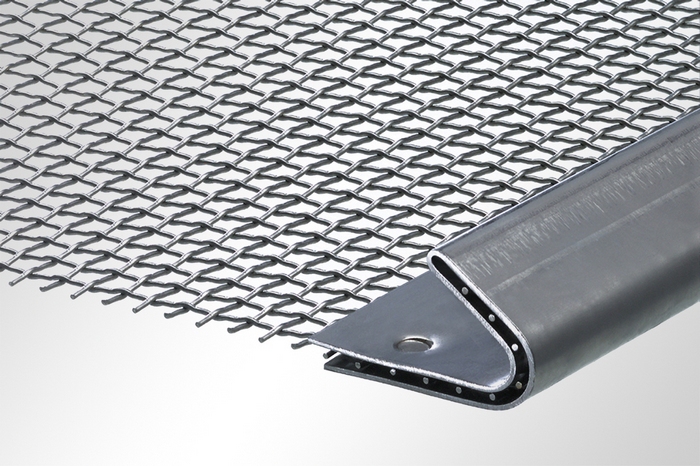

7. Edge Preparation: Plain, bent, reinforced shroud, welded shroud, bolt shroud.
