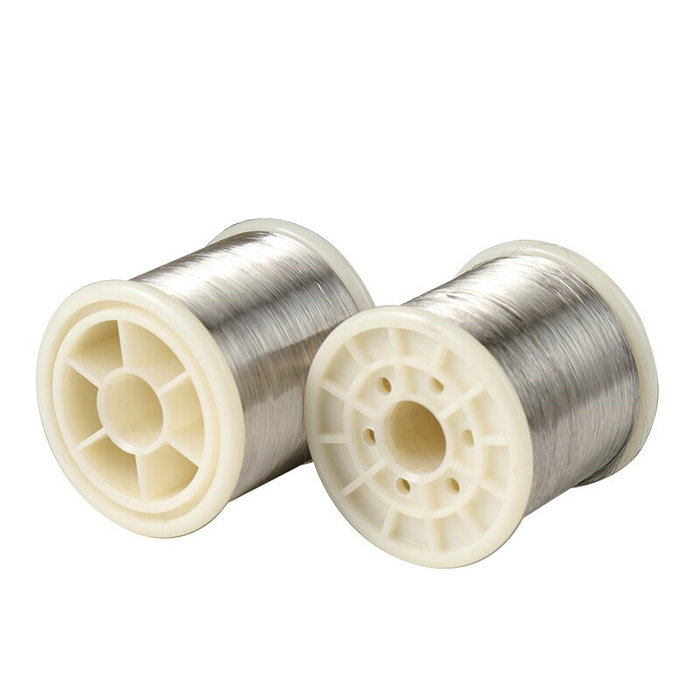

Pure nickel wire has good mechanical strength,corrosion-resistant and heat-resistance strength.It is widely used in electric apparatus,chemical machinery,ood processing equipment,rechargeable batteriesomputers, cellular Phone, power tools, camcorders and so on.
Size Range
Wire:dia 0.025-10mm
Ribbon:(0.05-0.2)*(0.5-6.0)mm
Strip:(0.05-0.5)*(5-200)mm
Plate: custom made
NUS N02201 (ASTM B 162) same as N4 (GB/T 2054).
NUS N02200 (ASTM B 162) same as N6 (GB/T 2054).
Specification:
| Grade | Ni+Co | Cu | Si | Mn | C | Mg | S | P | Fe |
| N4 | 99.8 | 0.015 | 0.03 | 0.002 | 0.01 | 0.01 | 0.001 | 0.001 | 0.04 |
| N6 | 99.6 | 0.10 | 0.10 | 0.05 | 0.10 | 0.10 | 0.005 | 0.002 | 0.10 |
| Ni201 | ≥99.0 | ≤0.25 | ≤0.35 | ≤0.35 | ≤0.02 | - | ≤0.01 | - | ≤0.40 |
| Ni200 | ≥99.2 | ≤0.25 | ≤0.35 | ≤0.35 | ≤0.15 | - | ≤0.01 | - | ≤0.40 |
Density:8.89 g/cm3
Tensile Strength ksi (min):462
Yield Strength 0.2% ksi (min):148
Elongation δ5 (%):40
Melting point:1435-1446°C
Features:
1. Nickel has good mechanical strength and ductility.
2. Excellent performance on corrosion-resistance.
3. High melting point.
4. With good weldability.
5. Low electrical resisitivity.
6. Electrical conductivity.
Functions/Applications
1. Used in vacuum device .
2. Electronic instrument component.
3. Filter screen which is used to filter the strong acid and alkali.
4. Electric light / Electric light source.
5. Chemical Industry.
6. Electronic cigarette heating wire.
